Flexible

FLEXIBLE CABLES KGTP

Flexible power cables for non-fixed installation and mobile equipment

TCG flexible power cables for non-fixed installation and connection of mobile equipment. Stranded copper conductors of flexibility class 5 with insulation and sheath of styrenic thermoplastic elastomers (TPE-S). Used to supply power to mobile machines, mechanisms, welding stations, generators, lifts, cranes and mining machinery. Rated voltage 660 V AC (up to 400 Hz) or 1000 V DC. Temperature range -40°C … +50°C. The category includes 5 types: the basic KGTP, the flame-retardant KGNTP, the highly flexible KPGTP, the flame-retardant highly flexible KPGNTP and the KGUTP with reinforcing elements for heavy machinery.

Conductor Copper, flexibility class 5
Insulation Styrenic thermoplastic elastomers
Voltage 660 V AC / 1000 V DC
Application Mobile machines and equipment

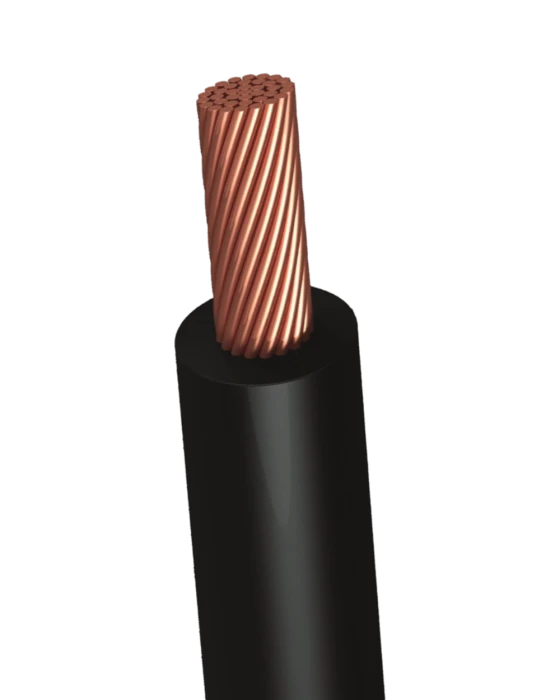

KGTP Flexible

KGTP

TCG TS
Flexible power cable with copper conductors for mobile machines
Voltage 660 V AC / 1000 V DC
Conductor Copper, flexibility class 5
Cores 1, 2 or 3
Cross-section 0.75 – 120 mm²
Product range:
1×2.5 1×4 1×6 1×10 1×16 1×25 1×35 1×50 1×70 1×95 1×120 3×2.5 3×4 3×6 3×10 3×16 3×25 3×35 3×50
Learn more Request a price
KGNTP Flexible + ng

KGNTP

TCG TS
Flame-retardant flexible power cable
Voltage 660 V AC / 1000 V DC
Feature Does not propagate flame
Cores 1 – 5
Cross-section 1 – 95 mm²
Product range:
1×1 1×2.5 1×4 1×6 1×10 1×16 1×25 1×35 1×50 1×70 1×95 3×2.5 3×4 3×6 3×10 3×16 3×25 3×35 3×50 3×70
Learn more Request a price
KPGTP High flexibility

KPGTP

TCG TS
High-flexibility cable with copper conductors for moving applications
Voltage 660 V AC / 1000 V DC
Feature High flexibility
Cores 1 – 5
Cross-section 0.75 – 70 mm²
Product range:
1×0.75 1×1 1×1.5 1×2.5 1×4 1×6 1×10 1×16 3×0.75 3×1 3×1.5 3×2.5 3×4 3×6 3×10 4×1.5 4×2.5 5×1.5 5×2.5
Learn more Request a price
KPGNTP High flexibility + ng

KPGNTP

TCG TS
Flame-retardant high-flexibility cable
Voltage 660 V AC / 1000 V DC
Feature High flexibility + ng
Cores 1 – 5
Cross-section 1.5 – 70 mm²
Product range:
3×1.5 3×2.5 3×4 3×6 3×10 3×16 3×25 3×35 4×1.5 4×2.5 4×4 4×6 5×1.5 5×2.5 5×4
Learn more Request a price
KGUTP Heavy duty

KGUTP

TCG TS
Flexible power cable with reinforcing elements
Voltage 660 V AC / 1000 V DC
Feature Reinforcing elements
Cores 1 – 5
Cross-section 50 – 150 mm²
Product range:
1×50 1×70 1×95 1×120 1×150 3×50 3×70 3×95 3×120 3×150 4×50 4×70 4×95 5×50 5×70
Learn more Request a price

COMPARISON OF FLEXIBLE KGtp TYPES

ParameterKGTPKGNTPKPGTPKPGNTPKGUTP
FlexibilityFlexible, class 5Flexible, class 5Highly flexibleHighly flexibleFlexible with reinforcing elements
Flame propagationNot ratedDoes not propagateNot ratedDoes not propagateNot rated
ConductorCopperCopperCopperCopperCopper
Insulation and sheathStyrenic thermoplastic elastomersReduced-flammability TPETPEReduced-flammability TPETPE with reinforcing elements
Number of cores1, 2, 31, 2, 3, 4, 51, 2, 3, 4, 51, 2, 3, 4, 51, 2, 3, 4, 5
Cross-sections, mm²2.5–120 / 0.75–1202.5–70 / 1–95 / 1–250.75–701.5–7050–150
ApplicationMobile machines and mechanismsSame + fire riskManipulators, robots, liftsSame + fire riskMining machines, heavy machinery
Voltage AC660 V, up to 400 Hz660 V, up to 400 Hz660 V, up to 400 Hz660 V, up to 400 Hz660 V, up to 400 Hz
Voltage DCup to 1000 Vup to 1000 Vup to 1000 Vup to 1000 Vup to 1000 V
StandardTSTSTSTSTS
