XLPE + ng-LS
Power cable with XLPE insulation and a low-flammability PVC sheath
PvVGng(A)-LS is a power cable with copper conductors, cross-linked polyethylene insulation and a low-fire-hazard PVC sheath (ng — does not propagate flame, category A) with low smoke and gas emission (LS — Low Smoke). It combines the higher current rating of XLPE with fire safety.
The geometry is identical to PvVG; the difference is in the composition of the outer-sheath PVC compound. Full range of cross-sections: 1.5 — 800 mm².
| Type / size | Cores | Cross-section, mm² | IEC equivalent | Outer Ø, mm | Weight, kg/km | Current (in air), A |
|---|---|---|---|---|---|---|
| PvVGng(A)-LS 3×1.5 | 3 | 1.5 | — | 10.6 | 130 | 23 |
| PvVGng(A)-LS 3×2.5 | 3 | 2.5 | — | 11.5 | 169 | 32 |
| PvVGng(A)-LS 3×4 | 3 | 4 | — | 12.6 | 221 | 42 |
| PvVGng(A)-LS 3×6 | 3 | 6 | — | 13.8 | 288 | 54 |
| PvVGng(A)-LS 3×10 | 3 | 10 | — | 15.6 | 415 | 75 |
| PvVGng(A)-LS 3×16 | 3 | 16 | — | 17.8 | 598 | 100 |
| PvVGng(A)-LS 3×25 | 3 | 25 | — | 21.3 | 889 | 127 |
| PvVGng(A)-LS 3×35 | 3 | 35 | — | 23.7 | 1184 | 158 |
| PvVGng(A)-LS 3×50 | 3 | 50 | — | 24.9 | 1611 | 192 |
| PvVGng(A)-LS 3×70 | 3 | 70 | — | 28.4 | 2198 | 246 |
| PvVGng(A)-LS 3×95 | 3 | 95 | — | 32 | 2929 | 298 |
| PvVGng(A)-LS 3×120 | 3 | 120 | — | 35.3 | 3645 | 346 |
| PvVGng(A)-LS 3×150 | 3 | 150 | — | 39.2 | 4520 | 399 |
| PvVGng(A)-LS 3×185 | 3 | 185 | — | 43.6 | 5577 | 456 |
| PvVGng(A)-LS 3×240 | 3 | 240 | — | 48.4 | 7123 | 538 |
| PvVGng(A)-LS 4×2.5 | 4 | 2.5 | — | 12.4 | 205 | 32 |
| PvVGng(A)-LS 4×4 | 4 | 4 | — | 13.6 | 272 | 42 |
| PvVGng(A)-LS 4×6 | 4 | 6 | — | 14.9 | 359 | 54 |
| PvVGng(A)-LS 4×10 | 4 | 10 | — | 17 | 524 | 75 |
| PvVGng(A)-LS 4×16 | 4 | 16 | — | 19.5 | 763 | 100 |
| PvVGng(A)-LS 4×25 | 4 | 25 | — | 23.4 | 1144 | 127 |
| PvVGng(A)-LS 4×35 | 4 | 35 | — | 26.1 | 1531 | 158 |
| PvVGng(A)-LS 4×50 | 4 | 50 | — | 27.5 | 2097 | 192 |
| PvVGng(A)-LS 4×70 | 4 | 70 | — | 31.8 | 2901 | 246 |
| PvVGng(A)-LS 4×95 | 4 | 95 | — | 35.4 | 3830 | 298 |
| PvVGng(A)-LS 4×120 | 4 | 120 | — | 39 | 4776 | 346 |
| PvVGng(A)-LS 4×150 | 4 | 150 | — | 43.8 | 5974 | 399 |
PvVGng(A)-LS is a modification of PvVG for facilities with stricter fire safety requirements, while retaining the advantages of XLPE. Cross-linked polyethylene insulation (with a thermal rating of +90°C) is combined with a sheath of low-fire-hazard, low-smoke PVC compound.
Used in places with large numbers of people: hospitals, schools, shopping malls, metro systems and high-rise buildings — wherever fire safety is required together with high currents. Low smoke emission maintains visibility on escape routes; for circuits that must keep operating during a fire, fire-resistant cables with the FR index are chosen.
Conductors
Stranded copper.
Insulation
Cross-linked polyethylene (XLPE), +90°C continuous.
Stranding
The insulated cores are laid up into a cable core, with tape wrapping where required.
Sheath
Low-fire-hazard PVC compound with low smoke and gas emission (LS).

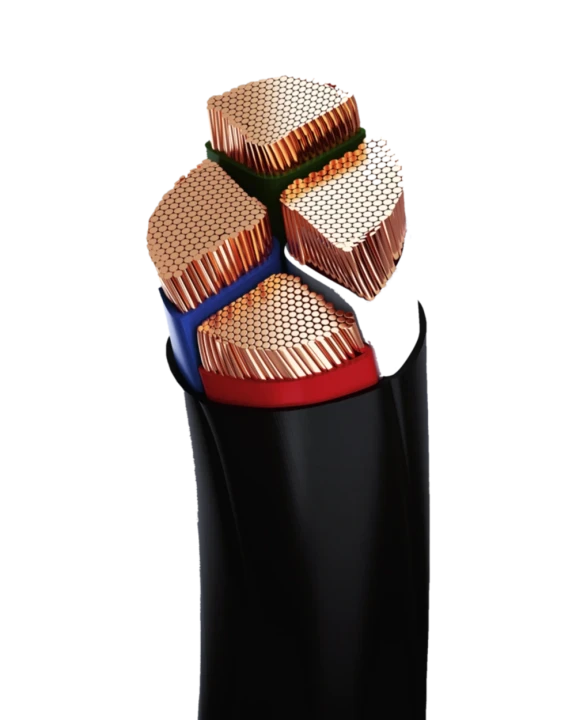

Cross-section of PvVGng(A)-LS – XLPE-insulated cores in a low-fire-hazard sheath
Full product range – see the TCG datasheet
