Al + 6-35 kV + armour
6-35 kV armoured power cable with aluminium conductors and XLPE insulation
APvBV is the aluminium armoured version for installing 6-35 kV trunk distribution networks in ground. The most economical solution for long medium-voltage routes with large conductor cross-sections. Designation breakdown: A – Al conductor, Pv – XLPE, B – armour, V – PVC sheath.
Sizes of armoured Al cables for 6/10 kV. Actual technical specifications from factory data.
| Type / size | Cores | Cross-section, mm² | Voltage | Copper screen, mm² | Outer Ø, mm | Weight, kg/km | Current (in air), A |
|---|---|---|---|---|---|---|---|
| APvBV 1×16 | 1 | 16 | 6/10 kV | 16 | 19.7 | 445 | 99 |
| APvBV 1×25 | 1 | 25 | 6/10 kV | 16 | 20.8 | 491 | 130 |
| APvBV 1×35 | 1 | 35 | 6/10 kV | 16 | 22 | 543 | 157 |
| APvBV 1×50 | 1 | 50 | 6/10 kV | 16 | 23.3 | 607 | 189 |
| APvBV 1×70 | 1 | 70 | 6/10 kV | 16 | 24.8 | 687 | 236 |
| APvBV 1×95 | 1 | 95 | 6/10 kV | 16 | 26.6 | 787 | 287 |
| APvBV 1×120 | 1 | 120 | 6/10 kV | 16 | 28.3 | 892 | 332 |
| APvBV 1×150 | 1 | 150 | 6/10 kV | 25 | 30.1 | 1068 | 376 |
| APvBV 1×185 | 1 | 185 | 6/10 kV | 25 | 32.2 | 1222 | 432 |
| APvBV 1×240 | 1 | 240 | 6/10 kV | 25 | 34.6 | 1411 | 511 |
| APvBV 1×300 | 1 | 300 | 6/10 kV | 25 | 36.7 | 1602 | 586 |
| APvBV 1×400 | 1 | 400 | 6/10 kV | 35 | 40.4 | 2008 | 676 |
| APvBV 1×500 | 1 | 500 | 6/10 kV | 35 | 43.7 | 2359 | 763 |
| APvBV 1×630 | 1 | 630 | 6/10 kV | 35 | 47.1 | 2754 | 863 |
APvBV is the most economical solution for installing medium-voltage trunk distribution lines in ground. It combines three factors: aluminium conductors (~3× cheaper than copper), XLPE insulation (long service life and overload resistance) and steel armour (mechanical protection).
Its main application is the 6-10 kV urban cable networks of Uzbekistan: supplying transformer substations, inter-network tie lines and trunk lines to large consumers (industrial enterprises, new residential complexes). It is also used at 15-35 kV for remote facilities and in the power industry.
Conductor
Aluminium, stranded, circular, compacted.
Semi-conducting conductor screen
Electrically conductive polymer compound.
Insulation
Cross-linked polyethylene (XLPE).
Semi-conducting insulation screen
Similar to the conductor screen.
Copper screen
Made of copper wires and tape.
Inner sheath (bedding)
PE compound under the armour.
Armour
Two galvanised steel tapes.
Outer sheath
PVC compound.

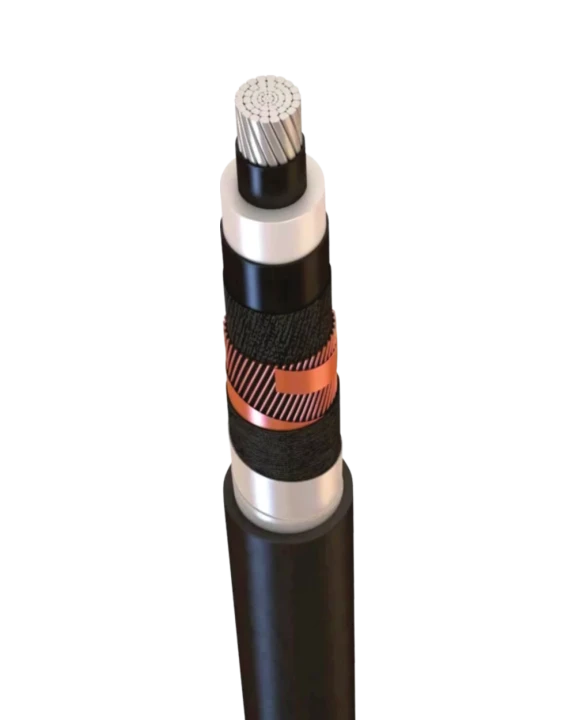

Cross-section of APvBV – Al conductor, XLPE, copper screen, steel armour, PVC sheath
