MV + armour + ng-LS

Power cables 6/10/35 kV GOST R 55025-2012

APVBVNG(A)-LS

Armoured low-fire-hazard, low-smoke MV power cable

APvBVng(A)-LS is the armoured version of APvVng(A)-LS with ng(A) + LS properties. It is the most fire-safe MV cable configuration for installation in ground: it does not propagate flame in bunched installation and has low smoke and gas emission when burning.

Voltage 6 – 35 kV

Conductor Aluminium

Protection Armour + ng-LS

Cross-section 25 – 800 mm²

Request a price Size table

APvBVng(A)-LS PRODUCT RANGE

The most fire-safe configuration of an armoured MV cable.

Type / size	Cores	Cross-section, mm²	Voltage	Copper screen, mm²	Outer Ø, mm	Weight, kg/km
APvBVng(A)-LS 1×25	1	25	6/10 kV	16	—	—
APvBVng(A)-LS 1×35	1	35	6/10 kV	16	—	—
APvBVng(A)-LS 1×50	1	50	6/10 kV	16	—	—
APvBVng(A)-LS 1×70	1	70	6/10 kV	16	—	—
APvBVng(A)-LS 1×95	1	95	6/10 kV	16	—	—
APvBVng(A)-LS 1×120	1	120	6/10 kV	16	—	—
APvBVng(A)-LS 1×150	1	150	6/10 kV	16	—	—
APvBVng(A)-LS 1×185	1	185	6/10 kV	16	—	—
APvBVng(A)-LS 1×240	1	240	6/10 kV	25	—	—

Complies with GOST 31565-2012. The optimal choice for high-occupancy underground structures.

APvBVng(A)-LS cable description

APvBVng(A)-LS is the most protected version of MV cable in the TCG range: it combines XLPE (reliability), armour (mechanical protection for underground installation), low fire hazard (ng, cat. A) and low smoke emission (LS – Low Smoke). It is used at critical facilities with the most stringent fire safety requirements.

Typical applications: metro systems with their own power supply, tunnels beneath streets with heavy traffic, underground car parks beneath shopping malls with their own transformer substation, hospitals with a standalone power unit, high-rise buildings with MV distribution. Wherever an MV cable fire must not be allowed to spread further along the route and smoke must be kept to a minimum to allow people to evacuate.

Applications

MV trunk lines in underground structures with enhanced fire protection

Metro systems and high-occupancy tunnels

High-rise buildings with their own MV substation

Shopping malls, hospitals, schools – MV supply from a central transformer substation

The most fire-safe armoured MV configuration

Construction

Conductor

Aluminium, stranded.

Screens + XLPE

Copper wire screen

Bedding under armour

Armour

2 galvanised steel tapes.

Outer sheath

Low-fire-hazard, low-smoke PVC (LS). Minimal acrid smoke in a fire.

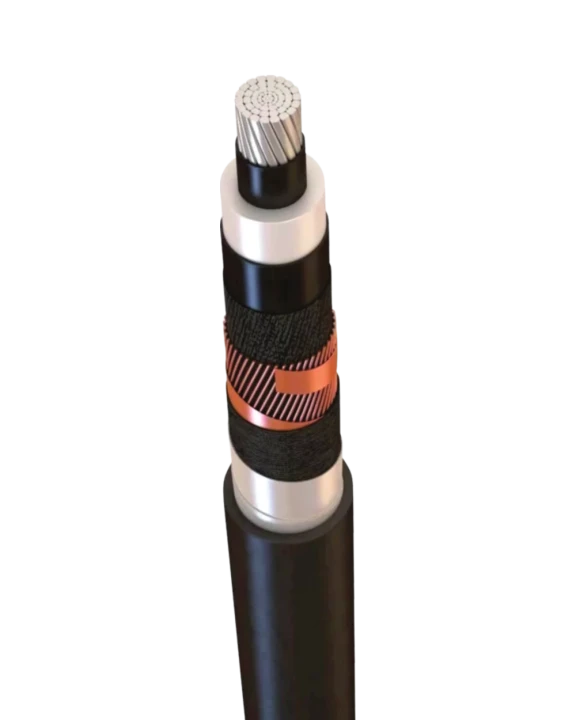

APvBVng(A)-LS cross-section – XLPE + armour + PVC ng-LS (orange sheath)

Technical specifications

Rated voltage 6 / 10 / 15 / 20 / 35 kV

Conductor material Aluminium

Insulation Cross-linked polyethylene (XLPE)

Armour 2 galvanised steel tapes

Outer sheath PVC ng-LS

Flame propagation Does not propagate, cat. A

Smoke emission Reduced by a factor of 5–7 (LS)

Cross-sections 25 – 800 mm²

Standard GOST R 55025-2012 / O'z DSt IEC 60502-2, GOST 31565-2012

Detailed specifications – see the TCG datasheet

Operating conditions

Installation temperature not below -20°C

Operating temperature -50°C … +50°C

Max. conductor t° (continuous) +90°C

Max. conductor t° (short circuit) +250°C

Air humidity up to 98% at +35°C

Min. bending radius 15 × Ø (single-core), 25 × Ø (three-core)

Service life at least 30 years

Warranty 5 years

Climatic category UHL
