HOUSEHOLD WIRES

Household wires for the electrical wiring of residential and public premises

TCG household wires for the electrical wiring of houses, flats and public premises. The category includes 9 types for different applications: flat sheathed (APUNP, PUNP — concealed installation in walls), single-core unsheathed (APUN, PUN — for installation in trunking and conduits), flexible (flat PUGNP, round PUGNK — for extension cords and household appliances), with a separating base (APPBN, PPBN, PPBNG — for exposed decorative installation). Cross-sections from 0.35 to 10 mm², 1-3 cores. All rated for voltages up to 250 V for the 220 V networks of residential buildings.

Application Household wiring
Conductors Al / Cu, 1-3 cores
Voltage up to 250 V
Standard GOST 6323-79 / TS
APUNP Al + flat

APUNP

TCG TS
Flat household wire with aluminium conductors
Voltage up to 250 V
Conductor Aluminium
Cores 2, 3
Cross-section 2.5 – 6 mm²
Product range:
2×2.5 2×4 2×6 3×2.5 3×4 3×6
Learn more Request a price
PUNP Cu + household

PUNP

TCG TS
Flat household wire with copper conductors
Voltage up to 250 V
Conductor Copper
Cores 2, 3
Cross-section 0.75 – 6 mm²
Product range:
2×0.75 2×1 2×1.5 2×2.5 2×4 2×6 3×0.75 3×1 3×1.5 3×2.5 3×4 3×6
Learn more Request a price

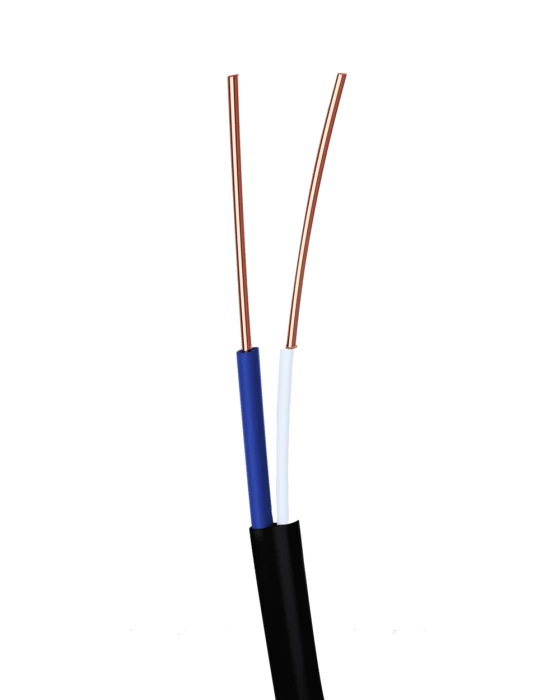

APUN Al + single-core

APUN

TCG TS
Single-core aluminium household wire
Voltage up to 250 V
Conductor Aluminium, 1 pc
Cross-section 2.5 – 10 mm²
Construction Unsheathed
Product range:
2.5 4 6 10
Learn more Request a price
PUN Cu + single-core

PUN

TCG TS
Household single-core copper wire
Voltage up to 250 V
Conductor Copper, 1 core
Cross-section 0.75 – 6 mm²
Construction No sheath
Product range:
0.75 1 1.5 2.5 4 6
Learn more Request a price
PUGNP Flexible + flat

PUGNP

TCG TS
Household flat flexible copper wire
Voltage up to 250 V
Conductor Copper, flexibility class 5
Cores 2, 3
Cross-section 0.35 – 4 mm²
Product range:
2×0.35 2×0.5 2×0.75 2×1 2×1.5 2×2.5 2×4 3×0.5 3×0.75 3×1 3×1.5 3×2.5 3×4
Learn more Request a price
PUGNK Flexible + round

PUGNK

TCG TS
Household round flexible copper wire
Voltage up to 250 V
Conductor Copper, flexibility class 5
Cores 2, 3
Cross-section 0.35 – 4 mm²
Product range:
2×0.5 2×0.75 2×1 2×1.5 2×2.5 2×4 3×0.75 3×1 3×1.5 3×2.5 3×4
Learn more Request a price
APPBN Al + web

APPBN

TCG TS
Household flat wire with a separating web, aluminium
Voltage up to 250 V
Conductor Aluminium
Cores 2, 3
Cross-section 2.5 – 6 mm²
Product range:
2×2.5 2×4 2×6 3×2.5 3×4 3×6
Learn more Request a price
PPBN Cu + web

PPBN

TCG TS
Household flat wire with a separating web, copper
Voltage up to 250 V
Conductor Copper
Cores 2, 3
Cross-section 0.75 – 6 mm²
Product range:
2×0.75 2×1 2×1.5 2×2.5 2×4 2×6 3×0.75 3×1 3×1.5 3×2.5 3×4 3×6
Learn more Request a price
PPBNG Flexible + web

PPBNG

TCG TS
Household flexible flat wire with a separating web
Voltage up to 250 V
Conductor Copper, flexibility class 5
Cores 2
Cross-section 0.35 – 2.5 mm²
Product range:
2×0.35 2×0.5 2×0.75 2×1 2×1.5 2×2.5
Learn more Request a price

COMPARISON OF HOUSEHOLD WIRES

ParameterAPUNPPUNPAPUNPUNPUGNPPUGNKAPPBNPPBNPPBNG
ConductorAlCuAlCuCuCuAlCuCu
ConstructionFlat, sheathedFlat, sheathedSingle-coreSingle-coreFlat, flexibleRound, flexibleFlat with sep. baseFlat with sep. baseFlat, flexible, with sep. base
Conductor class11115 (flexible)5 (flexible)115 (flexible)
Number of cores2, 32, 3112, 32, 32, 32, 32
Cross-sections, mm²2.5–60.75–62.5–100.75–60.35–40.35–42.5–60.75–60.35–2.5
InsulationPVCPVCPVCPVCPVCPVCPVCPVCPVC
SheathPVCPVCNoneNonePVCPVCWith separating baseWith separating baseWith separating base
ApplicationHousehold Al wiringHousehold Cu wiringSingle Al coresSingle Cu coresFlexible flatFlexible roundExposed Al wiringExposed Cu wiringFlexible exposed
Voltageup to 250 Vup to 250 Vup to 250 Vup to 250 Vup to 250 Vup to 250 Vup to 250 Vup to 250 Vup to 250 V

SEE ALSO

Copper wire and wire rod Cu-ETP, MM, MT, KMO — 20+ items
Photovoltaic - SOLAR H1Z2Z2-K — 10+ items
Lightning protection and optical fibre GTK, OKGT-Ts, OKGT-Ts-A, OKGT-S — 20+ items

CAN'T FIND THE CABLE YOU NEED?

Request the full price list or contact our sales department — we will help you select the right type and cross-section
