Cu + web
Household flat wire with a separating web, copper
PPBN is the copper equivalent of APPBN. A household wire with copper conductors in PVC insulation with a separating web. Designation breakdown: P – wire, P – flat, B – with separating web, N – fixed (stationary).
Sizes with technical specifications.
| Type | Cores | Cross-section, mm² | Size, mm | Weight, kg/km |
|---|---|---|---|---|
| PPBN 2×0.75 | 2 | 0.75 | 6.5×3.5 | 32 |
| PPBN 2×1 | 2 | 1 | 7.0×3.8 | 42 |
| PPBN 2×1.5 | 2 | 1.5 | 7.5×4.0 | 58 |
| PPBN 2×2.5 | 2 | 2.5 | 9.0×4.5 | 85 |
| PPBN 2×4 | 2 | 4 | 10.0×5.0 | 125 |
| PPBN 2×6 | 2 | 6 | 11.0×5.5 | 175 |
| PPBN 3×0.75 | 3 | 0.75 | 9.0×3.5 | 48 |
| PPBN 3×1 | 3 | 1 | 9.5×3.8 | 62 |
| PPBN 3×1.5 | 3 | 1.5 | 10.2×4.0 | 85 |
| PPBN 3×2.5 | 3 | 2.5 | 12.5×4.5 | 125 |
| PPBN 3×4 | 3 | 4 | 14.0×5.0 | 185 |
| PPBN 3×6 | 3 | 6 | 15.5×5.5 | 255 |
PPBN is a copper household wire with a separating web. An equivalent of APPBN with copper conductors. The design simplifies installation and looks neat when surface-mounted on walls.
Applications: surface wiring in residential, domestic and public premises; decorative wiring; secondary wiring of socket groups. The separating web is convenient for branches to loads – at the branch point the cores are easily separated and run individually to the socket terminals.
Copper conductors (2 or 3)
Solid, class 1.
Insulation
Colour-coded PVC compound.
Separating web
A thin plastic web between the cores for ease of installation.

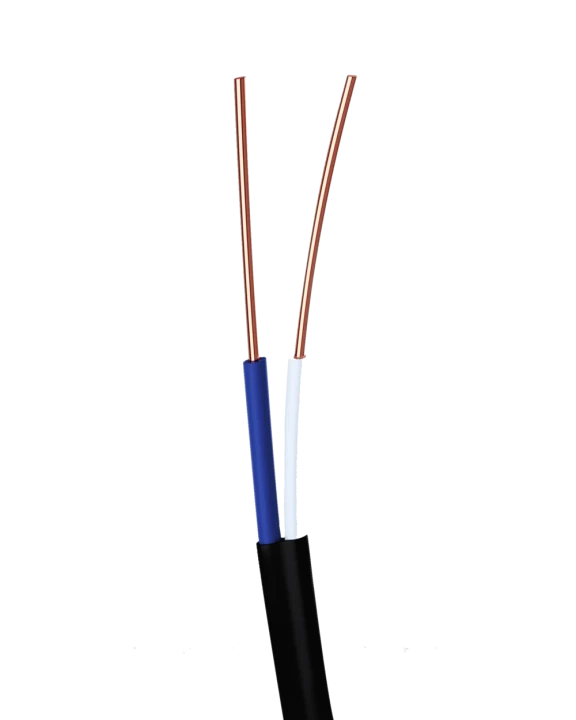

PPBN cross-section – 2 copper conductors in PVC insulation with a separating web
Detailed specifications – see the TCG datasheet
