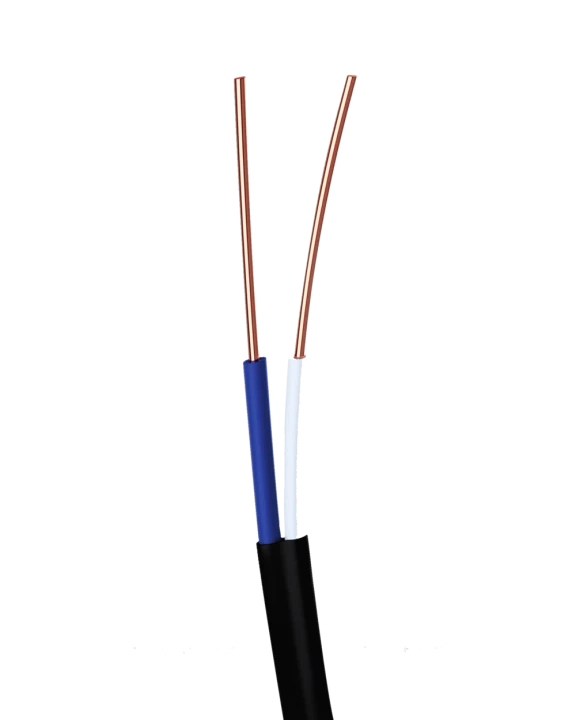

PPBNG

Household flexible flat wire with a separating web

PPBNG is a flexible version of PPBN. A two-core wire with copper conductors of flexibility class 5 in PVC insulation with a separating web. It is used for flexible surface wiring and the connection of low-current portable appliances. Designation breakdown: P – wire, P – flat, B – with separating web, N – fixed (stationary), G – flexible.

Voltage up to 250 V

Conductor Copper, flexibility class 5

Cores 2

Cross-section 0.35 – 2.5 mm²

Request a price Size table

PPBNG PRODUCT RANGE

Sizes with technical specifications.

Type	Cores	Cross-section, mm²	Size, mm	Weight, kg/km
PPBNG 2×0.35	2	0.35	5.2×2.8	18
PPBNG 2×0.5	2	0.5	5.5×3.0	23
PPBNG 2×0.75	2	0.75	6.0×3.2	32
PPBNG 2×1	2	1	6.5×3.5	42
PPBNG 2×1.5	2	1.5	7.0×3.8	58
PPBNG 2×2.5	2	2.5	8.5×4.5	85

Data are given for standard cross-sections per GOST 6323-79 and TCG TS. Intermediate cross-sections and different sheath colours can be manufactured on request.

PPBNG wire description

PPBNG is a flexible version of PPBN with stranded copper conductors of flexibility class 5. Two-core only, cross-sections 0.35-2.5 mm².

Ideal for connecting wall lights, sconces and floor lamps, and for decorative wiring where flexibility during installation is required. Also used for jumpers in junction boxes and for connecting small household appliances and chargers. The separating web keeps a neat appearance in surface installation.

Applications

Flexible surface wiring for light fittings and low-current devices

Decorative wiring that can be bent

Connection of sconces, floor lamps and wall lights

Small electrical appliances: radios, chargers

Jumpers in junction boxes

Construction

Copper conductors (2 pcs)

Stranded, flexibility class 5 per GOST 22483.

Insulation

High-elasticity PVC compound, colour-coded.

Separating web

A thin plastic web for ease of installation and the ability to separate the cores.

PPBNG cross-section – 2 stranded copper conductors in PVC insulation with a separating web

Technical specifications

Rated voltage up to 250 V

Conductor material Copper, flexibility class 5

Insulation PVC compound with separating web

Number of cores 2

Cross-sections 0.35; 0.5; 0.75; 1; 1.5; 2.5 mm²

Standard TCG TS

Detailed specifications – see the TCG datasheet

Operating conditions

Installation temperature not below -15°C

Operating temperature -40°C … +40°C

Air humidity up to 98% at +35°C

Service life at least 15 years

Warranty 3 years

Climatic category UHL
