Popular

SIP WIRES

Self-supporting insulated wires

Wires for overhead power lines rated at 0.6/1 kV and up to 20 kV. Used for trunk, branch and service-entrance lines in residential and industrial areas. They require no insulators or cross-arms — they are mounted on poles using line fittings.

Types SIP-1…4, SIPst, SIPn, SIPg
Voltage 0.6/1 kV – 20 kV
Conductor Aluminium
Items 25+
SIP-4 Popular

SIP-4

IEC: ABC
Self-supporting insulated wire without a messenger element
Voltage 0.66/1 kV
Conductor Al alloy
Cores 2 and 4
Cross-section 16–150 mm²
Product range:
2×16 2×25 4×16 4×25 4×35 4×50 4×70 4×95 4×120 4×150
Learn more Request a price
SIPst-2 Trunk OHL

SIPst-2

IEC: AXKA
Self-supporting insulated wire with an insulated neutral messenger reinforced with steel wire
Voltage 0.6/1 kV
Conductor Phases – Al alloy; neutral – Al + steel
Cores 3+1 (phases + insulated neutral)
Cross-section 16–120 mm²
Product range:
3×16+1×25 3×25+1×35 3×35+1×50 3×50+1×54.6 3×70+1×70 3×95+1×70 3×120+1×95
Learn more Request a price
SIPst-3 20 kV

SIPst-3

IEC: SAX
Single-core self-supporting covered conductor for 6–20 kV overhead lines, reinforced with steel wire
Voltage 6 – 20 kV
Conductor Al wires + steel wire
Cores 1 (covered)
Cross-section 35 – 95 mm²
Product range:
1×35 1×50 1×70 1×95
Learn more Request a price
SIP-2 Trunk overhead line

SIP-2

IEC: AXKA
Self-supporting insulated wire with an insulated neutral messenger
Voltage 0.6/1 kV
Conductor Aluminium
Cores 3+1 (phases + insulated neutral)
Cross-section 16 – 150 mm²
Product range:
3×16+1×25 3×25+1×35 3×35+1×50 3×50+1×54.6 3×70+1×70 3×95+1×70 3×120+1×95 3×150+1×95
Learn more Request a price
SIP-3 20 kV

SIP-3

IEC: SAX
Self-supporting single-core covered conductor for 6-20 kV overhead lines
Voltage 6 – 20 kV
Conductor Aluminium alloy
Cores 1 (covered)
Cross-section 35 – 240 mm²
Product range:
1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
SIP-1 0.4 kV OHL classic

SIP-1

IEC: AMKA
Self-supporting insulated wire with a bare neutral messenger
Voltage 0.6/1 kV
Conductor Aluminium
Cores 3+1 (bare neutral)
Cross-section 16 – 150 mm²
Product range:
3×16+1×25 3×25+1×35 3×35+1×50 3×50+1×54.6 3×70+1×70 3×95+1×70 3×120+1×95 3×150+1×95
Learn more Request a price
SIPg-3 Water-blocked

SIPg-3

IEC: SAX-W
Self-supporting water-blocked covered conductor for 6-20 kV overhead lines
Voltage 6 – 20 kV
Feature Longitudinal water blocking
Cores 1
Cross-section 35 – 240 mm²
Product range:
1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
SIPn-1 Flame-retardant

SIPn-1

IEC: AMKA
Flame-retardant self-supporting wire with a bare neutral core
Voltage 0.6/1 kV
Conductor Al alloy
Cores 3+1 (bare neutral)
Feature Flame-retardant
Product range:
3×16+1×25 3×25+1×35 3×35+1×50 3×50+1×54.6 3×70+1×70 3×95+1×70 3×120+1×95 3×150+1×95
Learn more Request a price

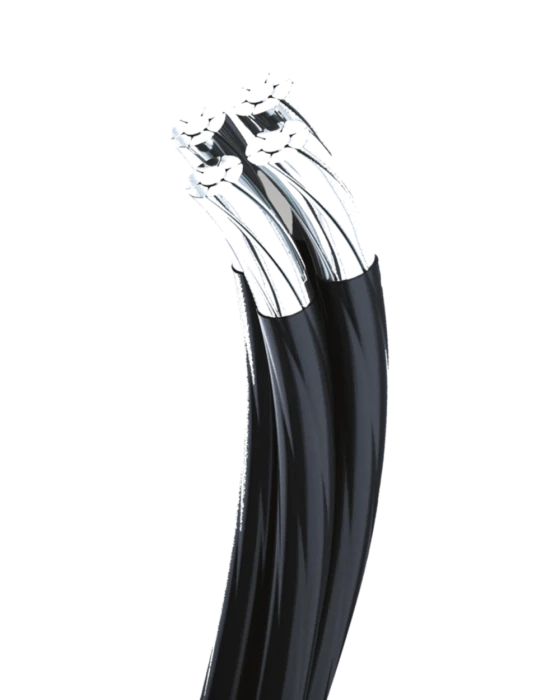

SIPn-2 Flame-retardant

SIPn-2

IEC: AXKA
Flame-retardant self-supporting wire with an insulated neutral core
Voltage 0.6/1 kV
Conductor Al alloy
Cores 3+1 (insulated neutral)
Feature Flame-retardant
Product range:
3×16+1×25 3×25+1×35 3×35+1×50 3×50+1×54.6 3×70+1×70 3×95+1×70 3×120+1×95 3×150+1×95
Learn more Request a price
SIPn-3 Flame-retardant

SIPn-3

IEC: SAX
Flame-retardant single-core covered conductor for 6-20 kV overhead lines
Voltage 6 – 20 kV
Conductor Al alloy
Cores 1 (covered)
Feature Flame-retardant
Product range:
1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
SIPn-4 Flame-retardant

SIPn-4

IEC: ABC
Flame-retardant self-supporting wire without a messenger element
Voltage 0.66/1 kV
Conductor Al alloy
Cores 2 or 4
Feature Flame-retardant
Product range:
2×16 2×25 4×16 4×25 4×35 4×50 4×70 4×95 4×120 4×150
Learn more Request a price

COMPARISON OF SIP TYPES

ParameterSIP-4SIPst-2SIPst-3
Voltage0.66/1 kV0.6/1 kV20 kV
MessengerNoneInsulated—
Number of cores2 or 43+11
Cross-section, mm²16–15016–12035–95
Conductor materialAl alloyAl alloy; neutral – Al + steelAl + steel
InsulationUV-stabilised PEUV-stabilised PECross-linked PE (XLPE)
ApplicationBranch lines, service entrancesTrunk OHL6-20 kV OHL, forested areas
IEC equivalentABCAXKASAX

SEE ALSO

Copper wire and wire rod Cu-ETP, MM, MT, KMO — 20+ items
Photovoltaic - SOLAR H1Z2Z2-K — 10+ items
Lightning protection and optical fibre GTK, OKGT-Ts, OKGT-Ts-A, OKGT-S — 20+ items

CAN'T FIND THE CABLE YOU NEED?

Request the full price list or contact our sales department — we will help you select the right type and cross-section
