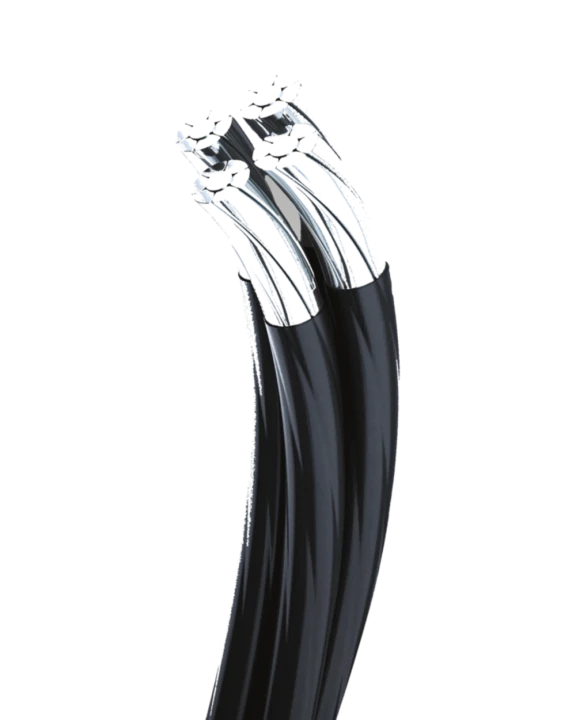

Self-supporting insulated wire without a messenger element
Wire with aluminium-alloy conductors and UV-stabilised polyethylene insulation. For 0.66/1 kV overhead lines — branch lines from the OHL to the service entrance and trunk lines.
The full list of manufactured cross-sections from the official TCG product range.
| Type / size | Cores | Cross-section, mm² | IEC equivalent | Outer Ø, mm | Weight, kg/km |
|---|---|---|---|---|---|
| SIP-4 2×16 | 2 | 16 | ABC | 14 | 150 |
| SIP-4 2×25 | 2 | 25 | ABC | 16 | 220 |
| SIP-4 4×16 | 4 | 16 | ABC | 19 | 290 |
| SIP-4 4×25 | 4 | 25 | ABC | 22 | 415 |
| SIP-4 4×35 | 4 | 35 | ABC | 24.5 | 545 |
| SIP-4 4×50 | 4 | 50 | ABC | 27 | 720 |
| SIP-4 4×70 | 4 | 70 | ABC | 30 | 970 |
| SIP-4 4×95 | 4 | 95 | ABC | 34 | 1250 |
| SIP-4 4×120 | 4 | 120 | ABC | 37 | 1550 |
| SIP-4 4×150 | 4 | 150 | ABC | 40 | 1850 |
SIP-4 — self-supporting insulated wire for overhead lines rated up to 1 kV. All cores are current-carrying conductors of aluminium alloy; there is no messenger element. Insulation — UV-stabilised cross-linked PE.
Available in 2-core and 4-core versions, cross-sections 16–150 mm². International designation — ABC (Aerial Bundled Cable).
Manufactured by Techno Cable Group JV LLC, Tashkent Region, Uzbekistan.
Conductor
Stranded, compacted, made of aluminium alloy.
Insulation
UV-stabilised cross-linked PE, black. Resistant to UV radiation.
Stranding
The cores are stranded together. There is no messenger element.
Cross-section of SIP-4 (4-core)
Detailed specifications (current-carrying capacity, resistance, weight) – to be added once the specifications file is uploaded
Specify the cross-section and quantity and we will prepare a proposal within 1 business day.
