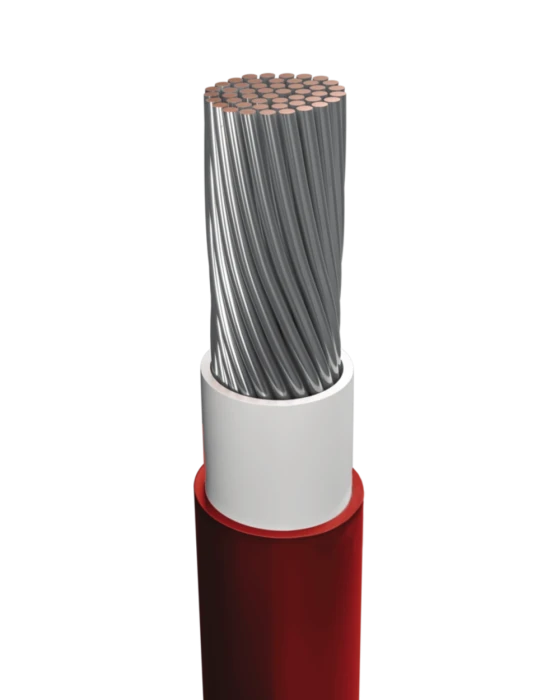

H1Z2Z2-K cables for solar power plants to EN 50618
TCG photovoltaic (solar) cables for connecting solar PV modules in photovoltaic installations. They comply with the European standard EN 50618 and the international standard IEC 62930. Key features: a UV-resistant halogen-free sheath that withstands direct sunlight for 25+ years, and a tinned copper conductor protected against oxidation at the contact with MC4 connectors. Used in solar power plants of any scale — from private installations to industrial fields of 100+ MW.
Solar
| Parameter | H1Z2Z2-K |
|---|---|
| Application | Photovoltaic (solar) systems |
| Conductor | Tinned copper, flexibility class 5 |
| Insulation | Reduced-flammability halogen-free polymer |
| Sheath | Halogen-free polymer, UV-resistant |
| Number of cores | 1 |
| Cross-sections, mm² | 1.5 – 120 |
| Voltage DC | 1.5 kV (max. 1.8 kV) |
| Temperature (after installation) | -40°C … +90°C |
| Installation temperature | -25°C … +60°C |
| UV resistance | Yes (≥ 25 years in sunlight) |
| Standard | EN 50618 / IEC 62930 / TCG TS |
