High flexibility
High-flexibility cable with copper conductors for moving applications
KPGTP is a high-flexibility cable for applications involving repeated bending and active movement: moving parts of machine tools, manipulators, robots and lifting equipment. It uses conductors made of even finer copper wires and a more elastic TPE compound. Designation breakdown: K – cable, P – high (flexibility), G – flexible, TP – thermoplastic elastomers.
Standard sizes from the TCG product range. Manufacture to special order is possible.
| Type / size | Cores | Cross-section, mm² | Voltage | Application |
|---|---|---|---|---|
| KPGTP 1×0.75 | 1 | 0.75 | 660 V | Control circuits |
| KPGTP 1×1 | 1 | 1 | 660 V | Control circuits |
| KPGTP 1×1.5 | 1 | 1.5 | 660 V | Control circuits, power supply |
| KPGTP 1×2.5 | 1 | 2.5 | 660 V | Single-phase supply |
| KPGTP 1×4 | 1 | 4 | 660 V | Single-phase supply |
| KPGTP 1×6 | 1 | 6 | 660 V | Single-phase supply |
| KPGTP 1×10 | 1 | 10 | 660 V | Single-phase supply |
| KPGTP 1×16 | 1 | 16 | 660 V | Single-phase supply |
| KPGTP 3×0.75 | 3 | 0.75 | 660 V | Control circuits |
| KPGTP 3×1 | 3 | 1 | 660 V | Control circuits |
| KPGTP 3×1.5 | 3 | 1.5 | 660 V | Three-phase supply |
| KPGTP 3×2.5 | 3 | 2.5 | 660 V | Three-phase supply |
| KPGTP 3×4 | 3 | 4 | 660 V | Three-phase supply |
| KPGTP 3×6 | 3 | 6 | 660 V | Three-phase supply |
| KPGTP 3×10 | 3 | 10 | 660 V | Three-phase equipment |
| KPGTP 4×1.5 | 4 | 1.5 | 660 V | Power + control circuit |
| KPGTP 4×2.5 | 4 | 2.5 | 660 V | Power + control circuit |
| KPGTP 5×1.5 | 5 | 1.5 | 660 V | Power + 2 control circuits |
| KPGTP 5×2.5 | 5 | 2.5 | 660 V | Power + 2 control circuits |
KPGTP is a high-flexibility cable for the most demanding dynamic applications. It differs from standard KGTP in having even finer copper wires in the conductors and a special sheath compound that withstands at least 100 000 bending cycles.
Main applications: moving parts of CNC machine tools and machining centres, industrial robots and manipulators, lifts and escalators, single-girder overhead cranes, other overhead cranes and drag chains (cable carriers). It is often used in multi-core versions (4-5 cores) for the simultaneous transmission of power and control signals.
Conductors
Stranded copper with extra-fine wires – flexibility class 5 per GOST 22483.
Insulation
Elastic compound based on styrenic thermoplastic elastomers with increased resistance to repeated bending.
Stranding
The insulated cores are stranded with a short lay length to retain flexibility under torsion.
Sheath
Elastic TPE with increased resistance to abrasion and repeated bending.

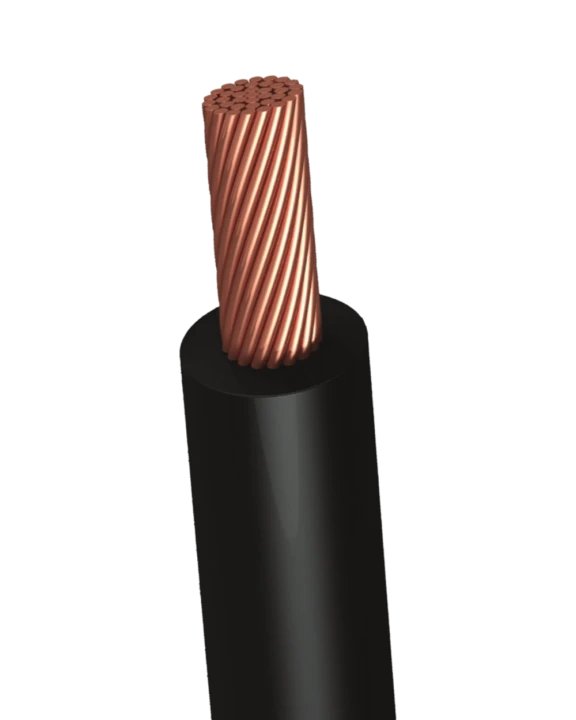

Cross-section of KPGTP – extra-flexible copper conductors in an elastic TPE sheath
Detailed specifications (load current, resistance, weight) are given in the TCG datasheet
Specify the cross-section and quantity and we will prepare a proposal within 1 business day.
