PBPng(A)-FRHF
Armoured fire-resistant halogen-free power cable
PBPng(A)-FRHF is an armoured fire-resistant power cable with copper conductors, a mica-based fire barrier, and insulation and sheath made of halogen-free polymer compounds. It combines three critical protective properties: FR – fire resistance (≥ 90 min at 750°C), ng(A) – flame-retardant in bunched installation, HF – halogen-free, plus additional armour made of galvanised steel tapes for installation in ground and under mechanical loads. Designation breakdown: P – halogen-free polymer insulation, B – steel tape armour, P – halogen-free polymer sheath, ng(A) + FRHF – fire-resistant, flame-retardant, halogen-free.
PBPng(A)-FRHF PRODUCT RANGE
Types and sizes of the armoured fire-resistant halogen-free cable. The geometry is similar to VBShvng(A)-FRLS; the difference is the halogen-free composition of the insulation and sheath.
| Type / size | Cores | Cross-section, mm² | Outer Ø, mm | Weight, kg/km |
|---|---|---|---|---|
| PBPng(A)-FRHF 3×2.5 | 3 | 2.5 | 17.5 | 280 |
| PBPng(A)-FRHF 3×4 | 3 | 4 | 18.5 | 345 |
| PBPng(A)-FRHF 3×6 | 3 | 6 | 19.8 | 415 |
| PBPng(A)-FRHF 3×10 | 3 | 10 | 21.5 | 545 |
| PBPng(A)-FRHF 3×16 | 3 | 16 | 23.5 | 740 |
| PBPng(A)-FRHF 3×25 | 3 | 25 | 27.0 | 1080 |
| PBPng(A)-FRHF 3×35 | 3 | 35 | 29.5 | 1395 |
| PBPng(A)-FRHF 3×50 | 3 | 50 | 31.5 | 1880 |
| PBPng(A)-FRHF 3×70 | 3 | 70 | 34.5 | 2490 |
| PBPng(A)-FRHF 3×95 | 3 | 95 | 39.5 | 3575 |
| PBPng(A)-FRHF 3×120 | 3 | 120 | 43.0 | 4330 |
| PBPng(A)-FRHF 3×150 | 3 | 150 | 47.0 | 5295 |
| PBPng(A)-FRHF 3×185 | 3 | 185 | 51.0 | 6455 |
| PBPng(A)-FRHF 3×240 | 3 | 240 | 56.5 | 8165 |
| PBPng(A)-FRHF 4×4 | 4 | 4 | 19.5 | 400 |
| PBPng(A)-FRHF 4×6 | 4 | 6 | 21.0 | 495 |
| PBPng(A)-FRHF 4×10 | 4 | 10 | 23.0 | 675 |
| PBPng(A)-FRHF 4×16 | 4 | 16 | 25.5 | 940 |
| PBPng(A)-FRHF 4×25 | 4 | 25 | 29.5 | 1365 |
| PBPng(A)-FRHF 4×35 | 4 | 35 | 32.0 | 1780 |
| PBPng(A)-FRHF 4×50 | 4 | 50 | 34.5 | 2415 |
PBPng(A)-FRHF cable description
PBPng(A)-FRHF is the top of TCG's range of fire-resistant halogen-free armoured cables. It combines all the critically important protective properties in a single design:
- FR fire resistance: a mica fire-barrier tape around each core keeps the insulation intact at 750°C for at least 90 minutes – enough time for evacuation and fire-fighting
- Flame-retardant (ng, category A): low-fire-hazard halogen-free polymers do not support combustion in bunched installation
- Halogen-free (HF / LSZH): no hydrogen chloride, other corrosive gases or acrid smoke are released when burning
- Steel armour: two galvanised steel tapes protect against mechanical damage during installation in ground and under dynamic loads
It is used in the most critical projects: fire protection systems of metro systems and tunnels, trunk lines of critical nuclear power plant systems, oil and gas facilities, and sea-going vessels. It is particularly appropriate where both mechanical protection (installation in ground or in places with vibration/impacts) and the full set of fire-safety properties are required.
Applications
Construction
Conductors
Stranded copper, 1-5 cores.
Fire barrier
Mica-based tape over each conductor. Maintains circuit integrity of the cable at 750°C for ≥ 90 minutes (GOST R 53316).
Insulation
Low-fire-hazard polymer compound containing no halogens.
Stranding and bedding under the armour
The insulated cores are stranded together, with a bedding of halogen-free compound over them.
Armour
Two galvanised steel tapes, applied helically with a gap of no more than 50% of the tape width.
Outer sheath
Halogen-free polymer compound (HF). Emits no corrosive gases or acrid smoke when burning.

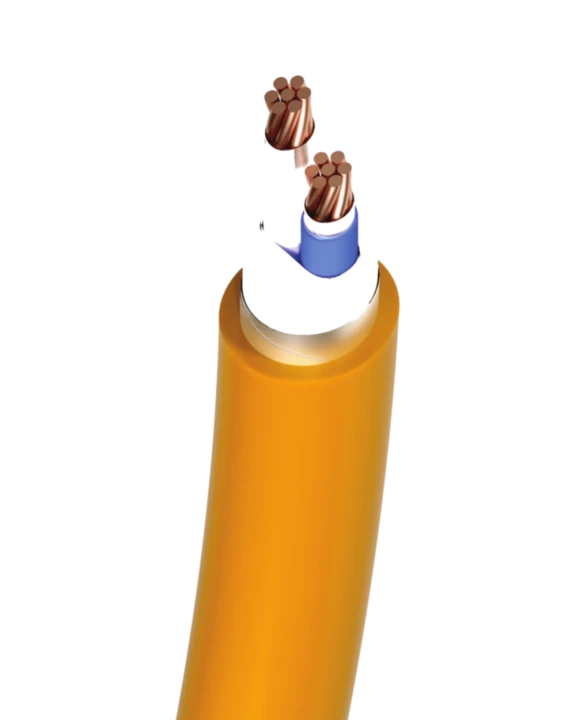

PBPng(A)-FRHF cross-section – mica fire-barrier tape + halogen-free insulation + steel armour + orange halogen-free sheath
Technical specifications
Detailed specifications – see the TCG datasheet
Operating conditions
REQUEST A PRICE
Specify the cross-section and quantity and we will prepare a proposal within 1 business day.
