6-35 kV

POWER CABLES 6/10/35 KV

Medium-voltage power cables with XLPE insulation for distribution networks

Medium-voltage power cables for rated voltages from 6 to 35 kV — the main product class for distribution networks. The construction includes a copper or aluminium conductor, cross-linked polyethylene (XLPE) insulation, a system of semi-conducting screens, a copper wire screen and an outer sheath of PVC compound or polyethylene (depending on the type). They are used in groups of 3 single-core cables (one per phase). TCG production complies with GOST R 55025-2012 and O'z DSt IEC 60502-2; versions for 6, 10, 15, 20 and 35 kV are produced in both standard and armoured designs.

Voltage 6 / 10 / 15 / 20 / 35 kV
Insulation Cross-linked polyethylene (XLPE)
Cores 1 (typically) or 3
Application 6-35 kV distribution networks
PvV 6-35 kV

PvV

IEC: N2XSE2Y
6-35 kV power cable with copper conductors and XLPE insulation
Voltage 6 / 10 / 15 / 20 / 35 kV
Conductor Copper
Insulation XLPE 3.4 mm (for 6/10 kV)
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240 1×300 1×400 1×500 1×630
Learn more Request a price
APvV Al + XLPE

APvV

IEC: NA2XSE2Y
6-35 kV power cable with aluminium conductors and XLPE insulation
Voltage 6 / 10 / 15 / 20 / 35 kV
Conductor Aluminium
Insulation XLPE 3.4 mm (for 6/10 kV)
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240 1×300 1×400 1×500 1×630
Learn more Request a price
PvBV 6-35 kV + armour

PvBV

IEC: N2XSEYB2Y
6-35 kV armoured power cable with copper conductors and XLPE insulation
Voltage 6 / 10 / 15 / 20 / 35 kV
Conductor Copper
Protection XLPE + copper screen + armour
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240 1×300 1×400 1×500 1×630
Learn more Request a price
APvBV Al + 6-35 kV + armour

APvBV

IEC: NA2XSEYB2Y
6-35 kV armoured power cable with aluminium conductors and XLPE insulation
Voltage 6 / 10 / 15 / 20 / 35 kV
Conductor Aluminium
Protection XLPE + screen + armour
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240 1×300 1×400 1×500 1×630
Learn more Request a price
PvP XLPE + PE

PvP

IEC: N2XSE2Y
6-35 kV power cable with copper conductors, XLPE insulation and PE sheath
Voltage 6 / 10 / 15 / 20 / 35 kV
Conductor Copper
Sheath Polyethylene (PE)
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
APvP XLPE + PE

APvP

IEC: NA2XSE2Y
6-35 kV power cable with aluminium conductors, XLPE insulation and PE sheath
Voltage 6 / 10 / 15 / 20 / 35 kV
Conductor Aluminium
Sheath Polyethylene (PE)
Cross-section 25 – 800 mm²
Product range:
1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
PvPu Reinforced sheath

PvPu

IEC: N2XSE2Y-U
6-35 kV power cable with Cu conductors and reinforced PE sheath
Voltage 6 – 35 kV
Conductor Copper
Feature Reinforced sheath
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
APvPu Reinforced sheath

APvPu

IEC: NA2XSE2Y-U
6-35 kV power cable with Al conductors and reinforced PE sheath
Voltage 6 – 35 kV
Conductor Aluminium
Feature Reinforced sheath
Cross-section 25 – 800 mm²
Product range:
1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
PvB Armour without sheath

PvB

IEC: N2XSEB
6-35 kV armoured power cable with Cu conductors, without outer sheath
Voltage 6 – 35 kV
Conductor Copper
Protection Armour (no sheath)
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
APvB Armour without sheath

APvB

IEC: NA2XSEB
6-35 kV armoured power cable with Al conductors, without outer sheath
Voltage 6 – 35 kV
Conductor Aluminium
Protection Armour (no sheath)
Cross-section 25 – 800 mm²
Product range:
1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price

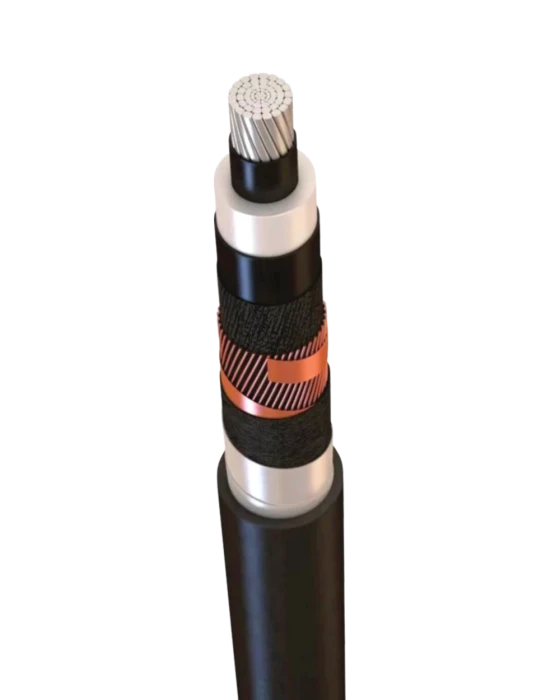

PvVng(A)-LS MV + ng-LS

PvVng(A)-LS

GOST R 55025-2012
6-35 kV low-fire-hazard power cable with Cu conductors
Voltage 6 – 35 kV
Conductor Copper
Feature ng (cat. A) + LS
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
APvVng(A)-LS MV + ng-LS

APvVng(A)-LS

GOST R 55025-2012
6-35 kV low-fire-hazard power cable with Al conductors
Voltage 6 – 35 kV
Conductor Aluminium
Feature ng (cat. A) + LS
Cross-section 25 – 800 mm²
Product range:
1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
PvBVng(A) MV + armour + ng

PvBVng(A)

GOST R 55025-2012
Armoured low-fire-hazard power cable 6-35 kV
Voltage 6 – 35 kV
Conductor Copper
Protection Armour + PVC ng
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
APvBVng(A) MV + armour + ng

APvBVng(A)

GOST R 55025-2012
Armoured low-fire-hazard power cable 6-35 kV
Voltage 6 – 35 kV
Conductor Aluminium
Protection Armour + PVC ng
Cross-section 25 – 800 mm²
Product range:
1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
PvBVng(A)-LS MV + armour + ng-LS

PvBVng(A)-LS

GOST R 55025-2012
Armoured low-fire-hazard, low-smoke MV power cable
Voltage 6 – 35 kV
Conductor Copper
Protection Armour + ng-LS
Cross-section 16 – 800 mm²
Product range:
1×16 1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price
APvBVng(A)-LS MV + armour + ng-LS

APvBVng(A)-LS

GOST R 55025-2012
Armoured low-fire-hazard, low-smoke MV power cable
Voltage 6 – 35 kV
Conductor Aluminium
Protection Armour + ng-LS
Cross-section 25 – 800 mm²
Product range:
1×25 1×35 1×50 1×70 1×95 1×120 1×150 1×185 1×240
Learn more Request a price

COMPARISON OF 6-35 kV TYPES

ParameterPvVAPvVPvBVAPvBV
ApplicationInstallation in cable structures and indoorsTrunk lines indoorsInstallation in ground, armouredTrunk lines in ground
ConductorCopper, strandedAluminium, strandedCopper, strandedAluminium, stranded
InsulationCross-linked polyethylene (XLPE)Cross-linked polyethylene (XLPE)Cross-linked polyethylene (XLPE)Cross-linked polyethylene (XLPE)
Semi-conducting screenOver the conductor and insulationOver the conductor and insulationOver the conductor and insulationOver the conductor and insulation
Copper screen16 mm² (for 16-185), 25 mm² (240+)SameSameSame
Protective coveringsUnarmouredUnarmouredArmour of 2 steel tapes + PVC sheathSame
SheathPVC compoundPVC compoundPVC compoundPVC compound
Number of cores1 (typically) or 31 (typically) or 31 or 31 or 3
Cross-sections, mm²16–80016–80016–80016–800
Voltage6 / 10 / 15 / 20 / 35 kV6 / 10 / 15 / 20 / 35 kV6 / 10 / 15 / 20 / 35 kV6 / 10 / 15 / 20 / 35 kV
IEC equivalentN2XSE2YNA2XSE2YN2XSEYB2YNA2XSEYB2Y
StandardGOST R 55025-2012 / O'z DSt IEC 60502-2GOST R 55025-2012 / O'z DSt IEC 60502-2GOST R 55025-2012 / O'z DSt IEC 60502-2GOST R 55025-2012 / O'z DSt IEC 60502-2
