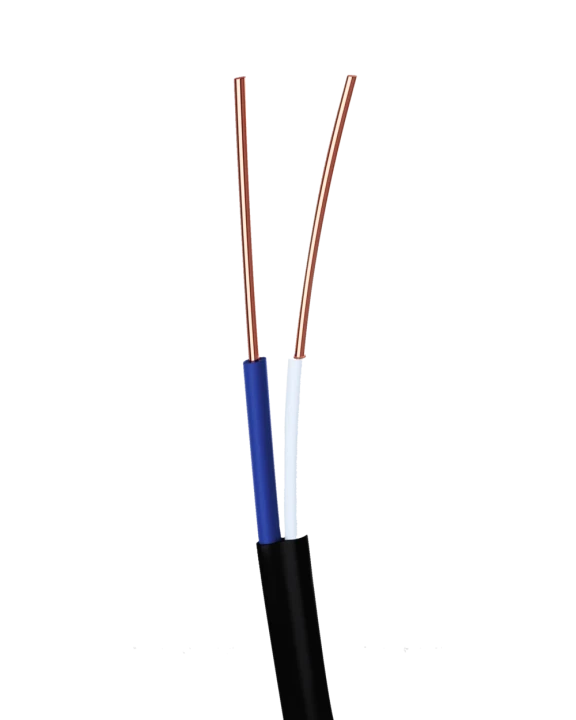

PUGNK

Household round flexible copper wire

PUGNK is a round flexible household wire. An equivalent of PUGNP, but with a round common sheath. It is used for extension cords, portable extension leads and the connection of household appliances where a round wire is more convenient (through bushings, corrugated conduit, under ceilings). Designation breakdown: P – wire, U – installation, G – flexible, N – fixed (stationary), K – round.

Voltage up to 250 V

Conductor Copper, flexibility class 5

Cores 2, 3

Cross-section 0.35 – 4 mm²

Request a price Size table

PUGNK PRODUCT RANGE

Sizes with technical specifications.

Type	Cores	Cross-section, mm²	Outer ⌀, mm	Weight, kg/km
PUGNK 2×0.5	2	0.5	4.2	23
PUGNK 2×0.75	2	0.75	4.6	32
PUGNK 2×1	2	1	5.0	42
PUGNK 2×1.5	2	1.5	5.5	58
PUGNK 2×2.5	2	2.5	6.8	85
PUGNK 2×4	2	4	8.0	125
PUGNK 3×0.75	3	0.75	5.0	45
PUGNK 3×1	3	1	5.4	60
PUGNK 3×1.5	3	1.5	6.0	82
PUGNK 3×2.5	3	2.5	7.3	120
PUGNK 3×4	3	4	8.5	175

Data are given for standard cross-sections per GOST 6323-79 and TCG TS. Intermediate cross-sections and different sheath colours can be manufactured on request.

PUGNK wire description

PUGNK is a round flexible household wire, an equivalent of PUGNP with a round cross-section. It is used where a flat shape is inconvenient – for installation through corrugated conduit, bushings and small openings, and for suspended wiring of light fittings.

The stranded class 5 copper conductors provide high flexibility and resistance to repeated bending – critical for extension cords and portable extension leads. With the same number and cross-section of cores, the round design is more compact than the flat one and allows tighter winding onto a reel.

Applications

Extension cords and portable household cables

Connection of household appliances with a flexible lead

Installation through corrugated conduit, bushings and openings

Suspended wiring for light fittings

Flexible wiring that can be re-routed

Construction

Copper conductors

Stranded, flexibility class 5.

Insulation

Colour-coded PVC compound.

Stranding

The insulated cores are laid up into a round core.

Sheath

Common round PVC sheath.

PUGNK cross-section – stranded copper conductors in a round PVC sheath

Technical specifications

Rated voltage up to 250 V

Conductor material Copper, flexibility class 5

Insulation and sheath PVC compound

Number of cores 2 or 3

Cross-sections 0.35; 0.5; 0.75; 1; 1.5; 2.5; 4 mm²

Standard TCG TS

Detailed specifications – see the TCG datasheet

Operating conditions

Installation temperature not below -15°C

Operating temperature -40°C … +40°C

Air humidity up to 98% at +35°C

Service life at least 15 years

Warranty 3 years

Climatic category UHL
