PUGNP

Household flat flexible copper wire

PUGNP is a flat flexible household wire with stranded copper conductors of flexibility class 5, PVC insulation and a common PVC sheath. It is used where flexibility is required: connection of household appliances with moving parts, extension cords. Designation breakdown: P – flat, U – installation wire, G – flexible, N – fixed (stationary), P – plastic sheath.

Voltage up to 250 V

Conductor Copper, flexibility class 5

Cores 2, 3

Cross-section 0.35 – 4 mm²

Request a price Size table

PUGNP PRODUCT RANGE

Sizes with technical specifications.

Type	Cores	Cross-section, mm²	Size, mm	Weight, kg/km
PUGNP 2×0.35	2	0.35	4.5×2.8	18
PUGNP 2×0.5	2	0.5	4.8×3.0	23
PUGNP 2×0.75	2	0.75	5.2×3.2	32
PUGNP 2×1	2	1	5.6×3.5	42
PUGNP 2×1.5	2	1.5	6.2×3.8	58
PUGNP 2×2.5	2	2.5	7.5×4.5	85
PUGNP 2×4	2	4	9.0×5.2	125
PUGNP 3×0.5	3	0.5	6.8×3.0	32
PUGNP 3×0.75	3	0.75	7.3×3.2	45
PUGNP 3×1	3	1	7.8×3.5	60
PUGNP 3×1.5	3	1.5	8.5×3.8	82
PUGNP 3×2.5	3	2.5	10.5×4.5	120
PUGNP 3×4	3	4	12.5×5.2	175

Data are given for standard cross-sections per GOST 6323-79 and TCG TS. Intermediate cross-sections and different sheath colours can be manufactured on request.

PUGNP wire description

PUGNP is a flexible flat household wire for applications where the ordinary rigid PUNP is inconvenient. The stranded copper conductors of flexibility class 5 bend easily and do not break under repeated flexing.

Main applications: extension cords and portable extension leads with a flat sheath, connection of portable household appliances (radios, audio equipment, lamps, charging stations), decorative wiring under skirting boards or along walls. The small cross-sections of 0.35-1 mm² suit low-current appliances; 1.5-4 mm² are for socket groups with flexible wiring.

Applications

Connection of household appliances with moving parts

Extension cords with a flat sheath

Small electrical appliances: radios, audio equipment, lamps

Installation under skirting boards and in hard-to-reach places

Decorative wiring along walls

Construction

Copper conductors

Stranded, flexibility class 5 per GOST 22483.

Insulation

PVC compound with colour-coded cores.

Sheath

Common flat PVC sheath, elastic.

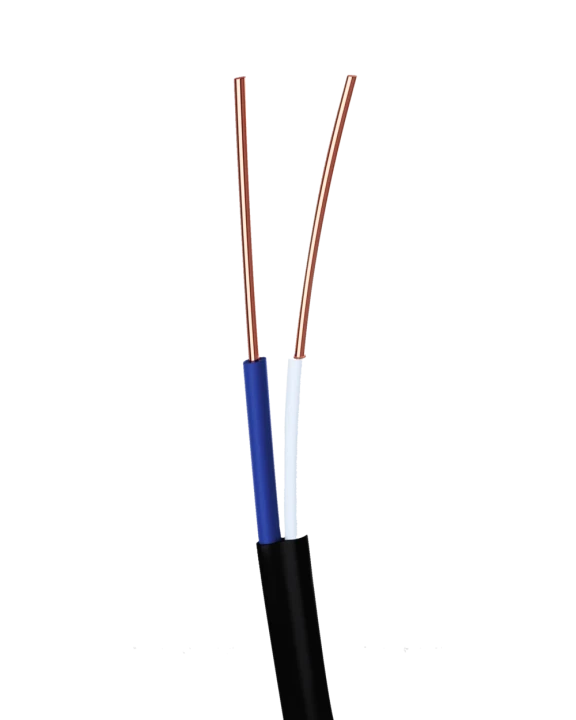

PUGNP cross-section – 2 stranded copper conductors in a common flat PVC sheath

Technical specifications

Rated voltage up to 250 V

Conductor material Copper, flexibility class 5

Insulation and sheath PVC compound

Number of cores 2 or 3

Cross-sections 0.35; 0.5; 0.75; 1; 1.5; 2.5; 4 mm²

Standard TCG TS

Detailed specifications – see the TCG datasheet

Operating conditions

Installation temperature not below -15°C

Operating temperature -40°C … +40°C

Air humidity up to 98% at +35°C

Service life at least 15 years

Warranty 3 years

Climatic category UHL
