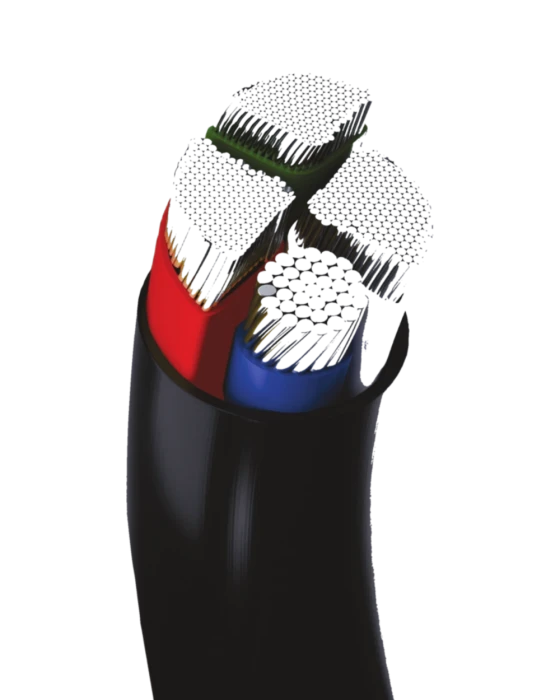

Power cables with aluminium conductors and PVC insulation for 0.66/1 kV
Power cables for a rated voltage of 0.66/1 kV with stranded aluminium conductors and polyvinyl chloride compound insulation. TCG production complies with GOST 31996-2012. Aluminium cables are lighter than copper ones and considerably cheaper — the optimal solution for distribution networks, trunk lines and substation supply. The category includes AVVG, the armoured AVBShv and the fire-safe AVVGng(A)-LS.
Economical
Armoured
ng-LS
| Parameter | AVVG | AVBShv | AVVGng(A)-LS |
|---|---|---|---|
| Application | Fixed installation indoors | Installation in ground, armoured | High-occupancy facilities |
| Conductor | Aluminium, stranded | Aluminium, stranded | Aluminium, stranded |
| Insulation | PVC compound | PVC compound | Reduced-flammability PVC compound |
| Protective coverings | Unarmoured | Armour of 2 steel tapes + PVC sheath | Unarmoured |
| Flame propagation | Not rated | Not rated | Does not propagate (ng, cat. A) |
| Smoke emission | Standard | Standard | Low (LS) |
| Number of cores | 1–5 | 1–5 | 1–5 |
| Cross-sections, mm² | 2.5–1000 | 2.5–240 | 2.5–1000 |
| Voltage | 0.66/1 kV | 0.66/1 kV | 0.66/1 kV |
| IEC equivalent | NAYY | NAYBY | — |
| Standard | GOST 31996-2012 | GOST 31996-2012 | GOST 31996-2012, GOST 31565-2012 |
| Advantage vs Cu | ~3× lighter, cheaper; larger Ø for the same current | Same + mechanical protection | Same + fire safety |
Request the full price list or contact our sales department — we will help you select the right type and cross-section
