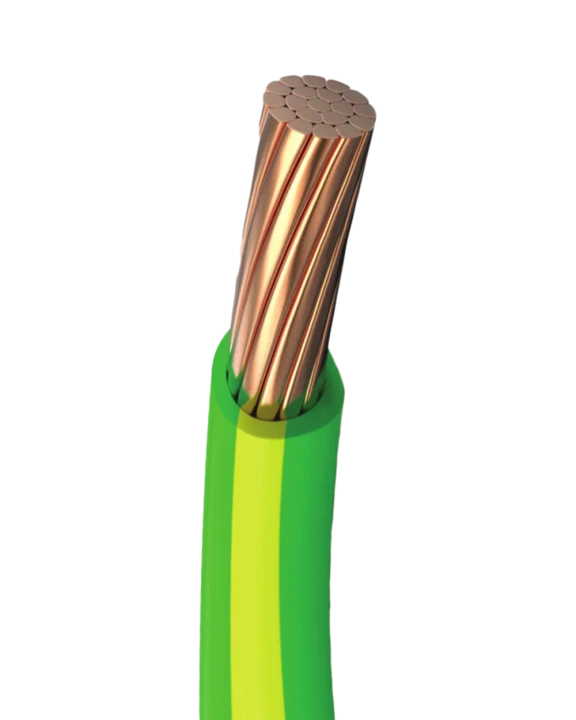

VPV

Installation wire for submersible motors with PVC sheath

VPV is a version of VPP with an outer sheath of PVC instead of polyethylene. It is used in the same conditions (submersible pumps), but where higher resistance to oils and petroleum products than PE can offer is required. Designation breakdown: V – submersible, P – PE insulation, V – PVC sheath.

Application Submersible pumps, oil

Conductor Copper

Sheath PVC (oil- and petroleum-resistant)

Cross-section 1.5 – 70 mm²

Request a price Size table

VPV PRODUCT RANGE

Sizes with technical specifications.

Type	Conductor ⌀, mm	Insulation thickness, mm	Sheath thickness, mm	Outer ⌀, mm	Weight, kg/km
VPV 1.5	1.40	0.8	1.0	6.2	32
VPV 2.5	1.80	0.8	1.0	6.6	44
VPV 4	2.26	0.8	1.0	7.0	65
VPV 6	2.76	0.8	1.0	7.6	90
VPV 10	3.57	1.0	1.2	9.1	142
VPV 16	4.50	1.0	1.2	10.1	205
VPV 25	5.65	1.2	1.4	12.0	305
VPV 35	6.70	1.2	1.4	13.1	405
VPV 50	7.95	1.4	1.6	15.0	555
VPV 70	9.60	1.4	1.6	16.6	755

Data are given for standard cross-sections per GOST 31947-2012 (for APuV/PuV/PuGV) and TCG TS (for VPP/VPV). Exact parameters of a batch are given in the datasheet. Intermediate cross-sections and special insulation colours can be manufactured to order.

VPV wire description

VPV is a specialised wire for submersible equipment operating in media containing petroleum products, oils and chemical agents. It differs from VPP only in the material of the outer sheath: instead of polyethylene, a PVC compound with enhanced oil resistance is used.

The main applications are submersible oil pumps, oil production equipment and installations in contaminated industrial effluent. VPV is chosen when ordinary VPP is unsuitable because of the risk of the PE sheath swelling or breaking down on prolonged contact with oil. The PE electrical insulation is retained – it provides the waterproofing.

Applications

Submersible oil pumps in contact with crude oil and oils

Borehole pumps where petroleum products are present

Submersible equipment in industrial effluent

Systems with increased chemical exposure

An alternative to VPP for harsh media

Construction

Conductor

Stranded compacted copper.

Insulation

Polyethylene. Electrical insulation and protection against water.

Sheath

PVC compound. Enhanced resistance to oils, petroleum products and chemical agents.

VPV cross-section – copper conductor in PE insulation under a PVC sheath

Technical specifications

Rated voltage up to 660 V

Conductor material Copper

Insulation Polyethylene

Sheath PVC compound

Number of cores 1

Cross-sections 1.5 – 70 mm²

Oil resistance High

Standard TCG TS

Detailed specifications – see the TCG datasheet

Operating conditions

Operating temperature -40°C … +80°C

Operating environment Water (submersible pumps, boreholes)

Operating depth up to 350 m (for pumps)

Chemical resistance Aqueous solutions, oils, petroleum products

Min. bending radius 6 × Ø

Service life at least 10 years in water

Warranty 3 years

Climatic category UHL
